OwnerPatrick Graham
LocationChatsworth, California United States map
Web/EmailWebPage email image

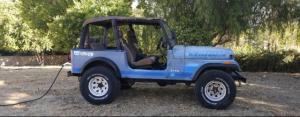

Vehicle1984 Jeep CJ-7
Modular build, fully electric Jeep CJ-7.

Regen, clutchless shifting, stock drivetrain
including stock 4-wheel drive.
MotorNetgain Hyper9HV-IS 3-Phase AC
DrivetrainMotor: Hyper9HV-IS connected to stock manual
transmission.
ControllerNetGain Controls X144 HV Controller
Stock Inverter pairing
Batteries7 Tesla Model S, 5.30 Volt, Lithium-Ion
7 stock Tesla Model S modules, 37.1kWh in total.
System Voltage144 Volts
ChargerElcon 6.6kW Charger - HK-J-144-46
HK-J Series 6.6KW UHF CAN Bus Battery Charger.
This will be the last time we use the Elcon
system. Moving to TC Chargers.
HeaterOptional
DC/DC ConverterElcon 1.5kW DC/DC charger
Moving to the combo charger.
InstrumentationStock speedometer AND AEM CD7 Digital Dash
Top Speed90 MPH (144 KPH)
Faster then anybody that has ever owned a Jeep
would EVER drive a Jeep.
AccelerationStarting in 2nd, pretty damn fast. Starting in
3rd, about the same as stock.
Range110 Miles (176 Kilometers)
Range varies by use.
~85 highway
~110 city
~118 off-road
Watt Hours/Mile3 Wh/Mile
Not sure what this is asking....?
EV Miles
Start:159,367 Miles (256,421 Kilometers)
Current:160,834 Miles (258,781 Kilometers)
Total:1,467 Miles (2,360 Kilometers)

    As of 7/4/2025
Seating Capacity4 adults
Curb Weight3,080 Pounds (1,400 Kilograms)
80 lbs below stock vehicle weight.
Tires33/10.50R15 BF Goodrich A/T
Conversion Time1 month.
Conversion Cost$28,000 plus battery modules
Additional FeaturesRetained full 4-wheel drivetrain with ability to shift without
a clutch.

Transfer-case was also retained and fully functional.
Easily the best and funnest Jeep I've EVER owned!

Stable and solid at all speeds, off-road is incredible with all that
torque at 1 RPM.
