Motor and controller
OwnerEdward l Fargo
Owner's Other EVs1993 Kawasaki Vulcan
1989 Kawasaki EX 500 Ninja
1991 Suzuki GSXR 750
Mini Speed Demon
2008 Zap Xebra Sedan
1979 Honda CB750R-E
1990s Kawasaki Drag bike
LocationSummerville, South Carolina United States map
Email email image

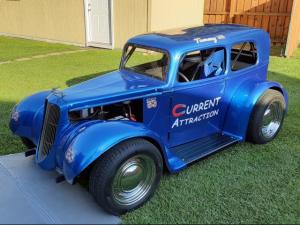

Vehicle1934 Ford Legends car
Legends car converted to a EV Drag Car for
the wife. (A REAL Drag racer!)
MotorNetgain Hyper 9 3-Phase AC
3 Phase AC, Synchronous Reluctance Internal
Permanent Magnet (SRIPM) Motor, rated at
88kW,
220 Nm torque at 0 rpm and up to 7,800 rpm
speed.
DrivetrainHyper 9 direct drive to a shortened Toyota
Differential.
Controller SME 750 amp ( Now owned by DANA Corp)
HyPer Drive X100
Controller by SME. Kit includes motor,
controller, contactor, wiring harness &
display
Unit rated up to 750 amps.
Has great regenerative braking feature
BatteriesCherolet Volt, 100.00 Volt, Lithium-Ion
6 battery packs from a wrecked Chevy volt.
1200 Available amps!
System Voltage100 Volts
Top Speed100 MPH (160 KPH)
Seating CapacityOne!
Curb Weight1,200 Pounds (545 Kilograms)
Conversion Time2 months
