DiagnosticsNew lithium battery cells
OwnerJonathan M Lucas
LocationTowanda, Kansas United States map
Email email image

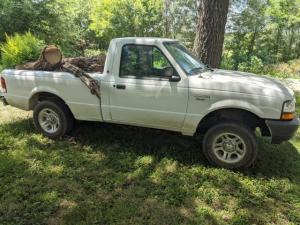

Vehicle2000 Ford Ranger EV
MotorSiemens 3-Phase AC
Drivetrain3:1 single speed reduction
Batteries88, 317.00 Volt, Lithium-Ion
Used battery from 2017 Chevrolet Bolt, protected
with Orion BMS
System Voltage312 Volts
HeaterElectric Resistance
InstrumentationStock, with instantaneous economy indicator and
miles remaining gauge. Miles remaining tops out
at 60 due to the original battery pack's low
nominal capacity of 18-25kWh
Top Speed75 MPH (120 KPH)
75mph in "D", 65 MPH in "E" with increased
regeneration
Acceleration0-60 in 11-12 seconds
Range140 Miles (225 Kilometers)
Full 100%-0% testing has not been performed. I
have travelled 120 miles with 10% left on the
battery.
Watt Hours/Mile2 Wh/Mile
Number given is wall-to-wheel. I believe the
stock charger is very inefficient.
EV Miles
Start:7 Miles (11 Kilometers)
Current:8 Miles (12 Kilometers)
Total:1 Miles (1 Kilometers)

    As of 1/24/2021
Seating Capacity3 adults
Curb Weight3 Pounds (1 Kilograms)
Official curb weight is 4,700lb with the lead
acid batteries. The Lead-acid pack is 1,900lb,
but the lithium replacement is 800lb, giving a
weight savings of 1,100
Tires4
Conversion Time2 weeks
Conversion Cost$8,000 for battery, BMS, and new water pump
When I bought this truck, the seller thought the batteries were bad
because it would only go 4 miles before shutting down. I discovered
the water pump was not functioning, which caused the motor to
overheat and throw a "power limit" error. After repairing this, I
have had no issues.
