OwnerJUAN ALONSO
Owner's Other EV2018 Bereco Cable 3000
LocationMadrid, Madrid Spain map
Email email image
Vehicle2011 Daelim Besbi-125

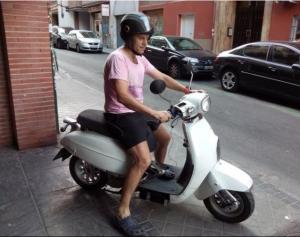

Electric conversion of a Daelim Besbi 125cc.
Original gas engine removed and
Motor
BLDC Motor 5Kw RV-120 Hall made by revolt (
Israel)
DrivetrainOriginal CVT removed, now pinion & sprockets
Controller
24 FET 4410 2500W 48/84V 65Amax BLDC motor
controller
Batteries5 12V 20Ah, 12.00 Volt, Lead-Acid, AGM
5 x 20 Ah AGM battery , floating independent
from scooter electrical system (lights, horn,
etc)
System Voltage60 Volts
Charger
Generic chinesse Lead-acid charger
InstrumentationShunt with Ammeter & Voltmeter, Main switch
Top Speed35 MPH (56 KPH)
Max speed 57km/h
AccelerationFrom 0 to 50kmh 10 seconds
Range12 Miles (19 Kilometers)
EV Miles
Start:11,300 Miles (18,181 Kilometers)
Current:11,600 Miles (18,664 Kilometers)
Total:300 Miles (482 Kilometers)

    As of 11/11/2017
Seating Capacity2 adults
Curb Weight0
Original weight before removing gas engine
92kg. Conversion final weight 120kg
Tires13"
Conversion Time2 months
