OwnerMario
Owner's Other EV1991 Suzuki Maruti
LocationSlavonski Brod, Slavonija Croatia (Hrvatska) map
Email email image

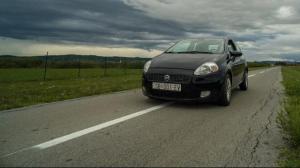

Vehicle2006 Fiat Fiat Grande Punto
Motor Rade Koncar 5kw Series Wound DC
Rade koncar 5kw on 72V, upgraded to 96V. Former
forklift motor.
ControllerZapi Zapi H2
Zapi H2 controller 72V 400A, upgraded on 96V 400A.
Curently set on 220A max, enought for city driving.
Batteries32 Winston LiFeYPo4, 3.00 Volt, Lithium Iron Phosphate
Curent setup 32 cells 100AH. Will be upgraded with
aditional 60 cells.
System Voltage96 Volts
ChargerLambda
2x 58V 15A chargers
HeaterElectric 2KW
DC/DC ConverterMeanwell
2X Meanwell AC-DC converter that works on DC-DC an
give 14A at 13,8V
InstrumentationCycle Analyst,
BMS home made and deweloped by friend
Top Speed50 MPH (80 KPH)
2 gear 50km/h
3 gear 65km/h
4 gear 75km/h
5 gear 81km/h
AccelerationNot tested yet
Range50 Miles (80 Kilometers)
Curent 50 miles (80 Kilometers), Upgraded 150 miles
(240 kilometers)
Watt Hours/Mile105 Wh/Mile
For speed 50 km/h 105w/km
For speed 60 km/h 120w/km
Higher speed didnt tested
EV Miles
Start:134,000 Miles (215,606 Kilometers)
Current:136,000 Miles (218,824 Kilometers)
Total:2,000 Miles (3,218 Kilometers)

    As of 9/7/2015
Seating Capacity5 persons
Curb Weight0
1.200 kg
Tires195/65 R15
Conversion Time6 months
Conversion CostAround 10.000 usd/eur
Additional FeaturesCheck the video: WebPage
