AcumulatorMy Prius
OwnerMarian Nica
LocationBals, Olt Romania map
Web/EmailWebPage email image
Vehicle2004 Toyota Prius II
hybrid vehicle
Motor OTHER 3-Phase AC
two electric motors Mg1+Mg2 in the transmission
ECVT, 45 KW, that exist in the standard version of
the car
Drivetrainfront-wheel drive
Controller other
The controller turns the DC 240 V battery, AC in
550 V. Maximum power electronically limited to 20
kW.
Batteries66 cells of 3.7 V / 45 ah in series and a total of, 244.20 Volt, Lithium-Ion
battery comes from a Chevrolet Volt is
manufactured by LG CHEM
System Voltage240 Volts
ChargerElcon PFC 2500
2500 W
Heaterbattery and cabin heater for winter
DC/DC Converter OTHER
DC/DC CONVERTER 240 V/12 V, P=1000 W
InstrumentationVOLTMETER
Top Speed55 MPH (88 KPH)
Minimum autonomy is 56 km / h at the speed of 90km
/ h on the track varied and all electrical start
AccelerationLINEAR
Range35 Miles (56 Kilometers)
56 KM

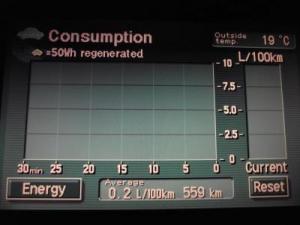

Watt Hours/Mile224 Wh/Mile
90 KM/H
EV Miles
Start:114,375 Miles (184,029 Kilometers)
Current:125,000 Miles (201,125 Kilometers)
Total:10,625 Miles (17,095 Kilometers)

    As of 12/12/2015
Seating Capacity1+4
Curb Weight3,196 Pounds (1,452 Kilograms)
TiresDunlop BlueResponse 195/65 R15 91H
Conversion Time3 MONTHS
Conversion Cost3500 EUR+CAR+80 working hours
Additional FeaturesGPL
I think that is the most efficient conversion of a hybrid vehicle
