| Location | Vila Nova de Gaia, Porto Portugal map |
|---|---|
| Web | WebPage |
| Vehicle | 2012 |
| Motor | Crystalyte 5306 Upgrade phase wires and some ventilation |
| Controller | 18x4115 lyen edition |
| Batteries | 8 Turnigy 6s 5000mha, 25.00 Volt, Lithium-Polymer 2 battery in parallel for 10amps, and then 4 groups of 10amps in series for 100volts |
| System Voltage | 100 Volts |
| Charger | Powerlab 6 1000watts Fast and safe charger. |
| DC/DC Converter | no dc-dc I run a "magicshine" light on a different battery. |
| Top Speed | 45 MPH (72 KPH) This is a slow motor. But very fast acceleration and very efficient. |
| Acceleration | Fast |
| Range | 20 Miles (32 Kilometers) |
| Curb Weight | 0 heavy. The motor is super heavy. |
| Tires | 26x2.5 |
| Conversion Time | A lot |
| Conversion Cost | A lot |
| To much time for this conversion, but a lot off fun. | |

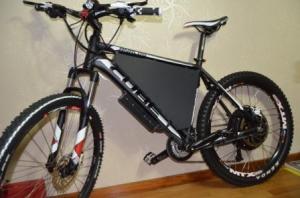

CUBE E-BIKE
Last Updated 01-02-2015
