OwnerEvan
LocationWest Lafayette, Indiana United States map
WebWebPage

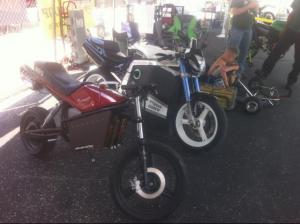

Vehicle1982 Honda MB-5
Around 220lbs (fully filled gas bike)
-Custom 4130 Swingarm brings wheelbase out to 1.4meters (!)
-78.7mph top speed (strip-verified)
-Front NS50 17"x1.5" wheel with 90/80
-2011 front caliper from ninja 250
-0-60 in 7 seconds
-Tiny
-A blast
Motorunknown Brushless DC
68% efficient at full power.. currently around 28HP to wheel at
30kW in
Drivetrain-Rear 6-PHASE 13" Vented hub With 140/60-13 tire
-2.5kWh of M1A
-Dual KBL96251 controllers
ControllerKelly KBL96251 x2
200A/230A per controller
Batteries28 A123 Systems M1A, 3.30 Volt, Lithium-Ion
In All Cell PCM material
System Voltage92 Volts
Charger Meanwell RSP-1000-48 x2
J1772 onboard for 2.5kW charge
DC/DC Converter $15 120W LED Driver
Top Speed79 MPH (127 KPH)
Acceleration0-60 in around 7 seconds
Range27 Miles (43 Kilometers)
Watt Hours/Mile80 Wh/Mile
EV Miles
Current:1,500 Miles (2,413 Kilometers)

    As of 11/29/2013
Curb Weight230 Pounds (104 Kilograms)
Conversion Cost$4000
