Ryan Bonigut's Elect Scoot

Owner	Ryan Bonigut
Location	Jacksonville, Florida United States ^map
Vehicle	old push scooter
Motor	Ohio Electric Permanent Magnet DC 1 HP 24 Volt
Drivetrain	dual chain reduction
Controller	modified resistive forklift controller
Batteries	2, 12.00 Volt, Lead-Acid, Flooded mix matched freebie car batteries
System Voltage	24 Volts
Charger	12 Volt automatic multipurpose charger
Heater	The resistive control, obviously.
Instrumentation	8 function bike speedo
Top Speed	32 MPH (51 KPH)
Acceleration	0 to 30 MPH in about 8-10 seconds
Range	25 Miles (40 Kilometers)
Seating Capacity	1 adult
Curb Weight	175 Pounds (79 Kilograms)
Tires	(R) 16" 90psi. (F) 20" 60psi standard.
Conversion Time	off and on for about 3 months
Conversion Cost	about $3 in bolts

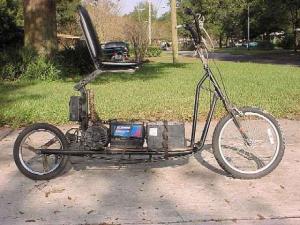

Amazing what you can do with spare parts, and a few freebies. The brakes are very undersized. But it does stop. Has 2 settings. Low power and full out, plus automatic freewheel when no power on. Its fun, extremly quiet, and a head turner. Parts of it are from the electric trike that had to be dismantled before I moved. Seen here: WebPage A bit of creativity went into this. Like how to make a strong enough rear wheel (that's bedframe spokes). And how to make a jackaxle (pedal asym off a old 20" bike). And some the frame stiffener under the scoot (store display). Happy Building, and EVing.
