OwnerJens Guenther
LocationGoerlitz, Saxony Germany map
Email email image

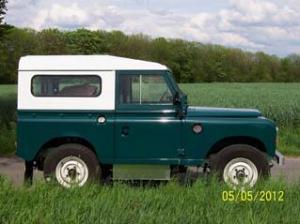

Vehicle1984 Land Rover Series III
Motor EVE M3 50 kw 3-Phase AC
DrivetrainWithout main gearbox, without clutch, E - motor is direct on the transfer - gearbox (2 gear ratios), 2 WD and optionally 4 WD (free wheel hubs on front wheels)
Controller EVE Quantum 330 (400A)
Batteries89 Thunder Sky LYP 160 AHA, 3.20 Volt, Lithium-Polymer
Batteries are stored in four boxes, one in front, one in the back and two on both sides under the front seats.
System Voltage285 Volts
ChargerZivan NG 3
HeaterWebasto 3,2 kw with fuel
DC/DC ConverterMeanwell PSP 500
InstrumentationOriginal speedometer and the little EV Display from CleanPowerAuto LLC
Top Speed67 MPH (107 KPH)
Accelerationreally good in low gear(much more than a original Series III with fuel motor), like the original in high gear
Range124 Miles (199 Kilometers)
maybe some more by driving on secondary roads around 80 km/h
EV Miles
Current:800 Miles (1,287 Kilometers)

    As of 10/25/2012
Seating Capacityfive, three in front, two in the back
Curb Weight3,850 Pounds (1,749 Kilograms)
Tires7.50 R16 special tyres for winter (at the moment), searching for tyres with low rolling resistance in this dimension
Conversion Timeone and a half year
Conversion Costnearly the same like a new landrover defender
