CanyonEVAC Motor
OwnerJoe LeClerc
LocationPrince George, British Columbia Canada map
Email email image

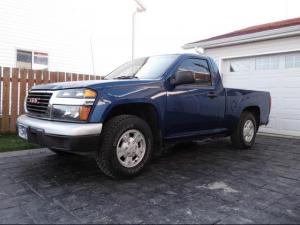

Vehicle2005 GMC Canyon
Motor AC-50 HPEVS 3-Phase AC
DrivetrainManual Transmission
ControllerCurtis 1238-7601
Batteries34 SINOPOLY 200AH, 3.20 Volt, Lithium Iron Phosphate
System Voltage110 Volts
ChargerElcon PFC2500
HeaterMES 4KW GLYCOL HEATER
DC/DC ConverterSure Power Industries, Inc
InstrumentationTBS EVPRO
CURTIS SPYGLASS
VOLTMETER
Andromeda EVIC
Top Speed88 MPH (141 KPH)
Range50 Miles (80 Kilometers)
@80% DOD
Watt Hours/Mile336 Wh/Mile
EV Miles
Start:61,205 Miles (98,478 Kilometers)
Current:104,853 Miles (168,708 Kilometers)
Total:43,648 Miles (70,229 Kilometers)

    As of 2/17/2020
Seating Capacity2
Curb Weight3,600 Pounds (1,636 Kilograms)
I weighed it at a truck scale. Front/Rear is 49/51.
TiresCooper 235 75 R15 all season
Blizzak 215 70 R15 winter
Conversion Time5 MONTHS
Conversion Cost$25000
Additional Features12V Electric Power Steering Pump
12V Vacuum Pump
This was my first EV conversion. Randy at Canadian EV was a great resource.
The MES 4Kw glycol heater worked well over the winter.
At -25 Celcius (-13 F) I turned on the heater for about 5 minutes before venturing out of the
garage. The battery weight in the truck box helped with traction on ice and snow.
