OwnerJason Munro
Owner's Other EV2007 Diamondback
LocationSydney, New South Wales Australia map
Vehicle2012 HP Velotechnik Scorpion FS

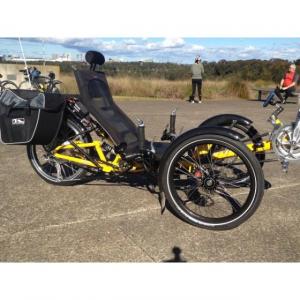

2012 Scorpion FS with 500W Ezee electric motor conversion
Motor Brushless DC
Ezee 500W motor
Drivetrain20" 500W Ezee kit running 12S 16000 mah lipo.
Controller
stock Ezee 20A controller running off 12S lipo
Batteries4 Zippy flightmax 6S 8000 mah, 22.20 Volt, Lithium-Polymer
Zippy Flightmax 6S 8000mah lipo bricks wired to be 12S2P giving 44.4V nominal and 50.4V fresh off the charger.
System Voltage50 Volts
ChargerHyperion EOS 0720i SD3
Hyperion EOS 0720i Super Duo 3 charger powered by a meanwell 24V 41.7A power supply
Heaternone
Instrumentationnone as yet.
Top Speed25 MPH (40 KPH)
Range35 Miles (56 Kilometers)
range depends greatly on how much the rider pedals. I can get 65km using only 20% of the available capacity. no pedal range would be about 45km.
Watt Hours/MileI have not yet fitted a CA, so I can not give wh/km readings as yet.
EV Miles
Current:565 Miles (909 Kilometers)

    As of 9/16/2012
Seating Capacity1 adult
Curb Weight60 Pounds (27 Kilograms)
Tiresschwalbe marathon plus 20"
Conversion Time2 days
Conversion Cost$8400 including the cost of the trike
