OwnerMichael Illingby
LocationColdstream, British Columbia Canada map
Web/EmailWebPage email image
Vehicle1965 Schwinn Folder

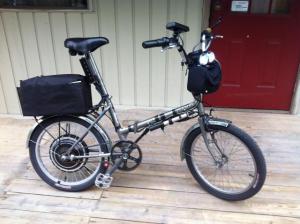

This is a Vintage Schwinn Folding bike that I converted to an
E-Bike.
Motor SYM-48-100F Brushless DC
Chinese made 1000w rear hub motor
DrivetrainPedals and a 1000Watt rear hub motor.
Controller Infineon 40Amp Brushless
Batteries1 48v 20ah made by VPower, 48.00 Volt, Lithium Iron Phosphate
System Voltage48 Volts
Charger 6amp supplied by Vpower
HeaterThe sun or a sweater with long pants ;)
DC/DC Converter Ebay Special
I have a 12v3A dc-dc converter onboard. Will be using it for
lighting and a cooling fan for my BMS
InstrumentationCycle Analyst v2.25 CA-DP
Top Speed28 MPH (45 KPH)
Range26 Miles (41 Kilometers)
Watt Hours/Mile31 Wh/Mile
my CA says my wh/km is 19.2. I tried to convert it, my math
may be off.
EV Miles
Current:300 Miles (482 Kilometers)

    As of 7/15/2012
Seating Capacity1 adult
Curb Weight71 Pounds (32 Kilograms)
Most of the weight is in the battery, and the motor
Tires20' GLH Animal road tires at 60PSI (rated for 110psi)
Conversion Timeabout 20 hours in total
Conversion Cost1200
Additional FeaturesI installed a Leyn Cruise control module. Must have for longer trips.
Half twist throttle with a button for activating Brake/Regen
Regen is also tied to each hand brake level in parallel
Controller is mounted vertically to the seat post for best cooling.
The lack of suspension made for a bit of a rough ride, but still a blast to ride. Turns heads everywhere I go, esp when I am powering up the hill at 30Km/h.

I recently moved the battery from the rear rack to a backpack which changed the weight distribution greatly. It still has a tendency to want to wheelie if you hit the throttle too hard from a standing start, but not nearly as bad as before. also bumps aren't quite as bad with my knees absorbing a lot of the bumps. The rear rack was taking a beating with the heavy 20ah pack on it

The rear hub motor came with a multi speed cassette, but the bike originally came with a 3 speed internally geared hub. When I swapped it out, there was no factory provision for a derailer, so I just picked a good gear and made it a single speed on the pedals. It is in the equivalent of 14th gear.
