| Owner | Andy Mahoney |
|---|---|
| Location | Yorkshire, England United Kingdom map |
| | |

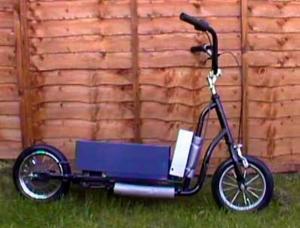

| Vehicle | Scootex front end |
| Motor | Minertina Motor J Series Rev. 02A Permanent Magnet DC |
| Drivetrain | Chain drive 4-1 Ratio, mountain Bike Chain and sprockets |
| Controller | 4QD Scoota 180 Amp |
| Batteries | 4, 12.00 Volt, Lead-Acid, AGM 7 Ah wired in series |
| System Voltage | 48 Volts |
| Charger | Soneil 48 Volt 4 Amp (Wonderful) |
| Instrumentation | None at the moment |
| Top Speed | 30 MPH (48 KPH) with ability to climb 25% inclines |
| Acceleration | 10 seconds |
| Range | 20 Miles (32 Kilometers) (I live in Yorkshire England, very hilly) |
| Seating Capacity | 1 adult (standing) |
| Curb Weight | 100 Pounds (45 Kilograms) estimated |
| Tires | 12" and 2.5" |
| Conversion Time | 2.5 Years on and off - Ongoing project |
| Conversion Cost | �1,000.00 plus lots of time and dedication |
| I am working on the final design for Turbo-Scooter Mark3! It uses a Bosch 750W Motor run at 36V and 219# Kart chain, the hubs have been cnc machined and it will be more powerful than the current version. | |
Turbo-Scooter
Last Updated 04-03-2004
