| Owner | Attila Herhof |
|---|---|
| Owner's Other EVs | 2017 Dahon Vitesse Arngreen |
| Location | Piliscsaba, Pest megye Hungary map |
| Web/Email | WebPage |
| Vehicle | 1983 Simson SR50 |
| Motor | 2kW BLDC Brushless DC China 2/4kw BLDC HUB motor |
| Drivetrain | HUB motor |
| Controller | unknown Individual 48V BLDC controller 48V 80A china BLDC controller modified. Max 72V 130A. |
| Batteries | DiaMec DMZ series, 54.00 Volt, Lead-Acid, AGM 4x12V + 1x6V lead acid AGM baterry. It's 54V, 38Ah. |
| System Voltage | 54 Volts |
| Charger | 48V 5A Greensaver and 6V 5A hand made chargers. |
| DC/DC Converter | 12V lead acid agm battery |
| Instrumentation | Voltmeter, Ampmeter, etc.... |
| Top Speed | 40 MPH (64 KPH) |
| Range | 20 Miles (32 Kilometers) Depend on the driver 50km/h - 35 km 40km/h - 40 km 30km/h - 50 km |
| Watt Hours/Mile | 60 Wh/Mile |
| Seating Capacity | 1 |
| Curb Weight | 0 120 kg. The battery is 58 kg. |
| Tires | Front 12x2.25 Rear 10R 130/90 |
| Conversion Time | Two months. |
| Conversion Cost | 1000 euro |

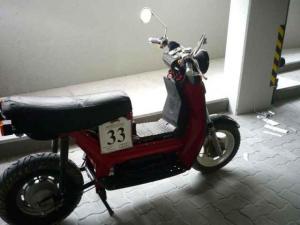

1983 Simson SR50
“Simson Voltage”
Last Updated 12-17-2011
