Kelly KBL48301 ControllerAssemblythrottle pedal assembly
OwnerJosh Hoop
Owner's Other EVMississippi State University EcoCAR
LocationStarkville, Mississippi United States map
Email email image

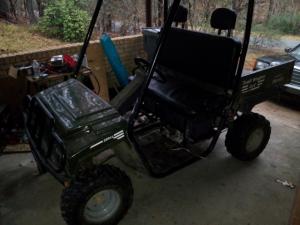

Vehicle2008 Brister's Trail Wagon TW413
Light UTV originally powered by a 390 cc Honda engine. 4wd (currently disabled)
MotorMars ME0201 Brushless DC
3 phase, 8 pole, PM BLDC motor
48 V, 90 A (cont.), 220 A (cont.)

Possibly adding a second motor for 4wd
capability and more power...
DrivetrainComet 500 CVT transmission
Dana Spicer transaxle
ControllerKelly KBL 48301
48 V, 150 A (cont.), 300 A (1 min)

Currently searching for a second
controller...
Batteries4, 12.00 Volt, Lead-Acid, AGM
60 lbs. each
System Voltage48 Volts
ChargerKelly F4815
48 V, 15 A
calibrated for AGM batteries
HeaterN/A
DC/DC ConverterKelly HWZ series
48 V / 13.5 V, 25 A
InstrumentationSOC (%), Motor Current (A)
Top Speed15 MPH (24 KPH)
Top speed: approx. 15 mph
Looking to replace comet cvt with chain
drive for better top speed.
AccelerationPowerful enough to leave skid marks on
cement...much better
acceleration off the line than a bad boy
buggy.
RangeTbd
Seating Capacity2-3 adults
Curb Weight1,100 Pounds (499 Kilograms)
Conversion Cost$1200
