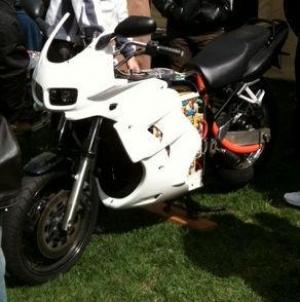

Finished eFazer
OwnerPaul Wayper
LocationCanberra, Australian Capital Territory Australia map
Email email image
Vehicle1999 Yamaha FZS 600
Original half-faired bike was in an accident - fairings and headlights damaged and chunk taken out of motor casing but no structural damage. Replaced fairings with full fairing kit from England, windscreen with touring screen from Eagle Screens.
MotorEnerTrac MHM-602 Brushless DC
Now fitted with a 3.25" rim.
DrivetrainDirect drive via hub motor.
ControllerKelly KBL12601I
120V, 600A peak, regenerative braking.
Batteries38 Thunder Sky LFP60AHA, 3.20 Volt, Lithium Iron Phosphate
Supplied by EV Works in Perth.
System Voltage120 Volts
ChargerKingpan KP12012.
Fairly simple standard charger.
HeaterLooking at heated gloves with their own batteries.
DC/DC Converter
Bought custom by a friend, produces ~12V at 3.3A (40W). Adjusted up to 13V.
InstrumentationExisting speedometer.

I bought a TBS e-Xpert pro, but it sees a constant drain on the battery of about 0.1A which I can't see from my instruments, so its actual idea of what the range is always slips down each charge.
Top Speed78 MPH (125 KPH)
It would be possible for me to verify that the motorbike will go up to 120km/hr if it was legal to go over 100km/hr in Canberra.
AccelerationModest at the moment - the controller is set at 50% of motor power, so it feels like taking off in third gear. But it keeps that rate of acceleration up to about 80km/hr, so it takes off roughly the same speed as normal car traffic but then they start falling behind...
Range78 Miles (125 Kilometers)
125km range based on recent measurements - I got to 81km and the BMS said there was about 25% battery remaining.
Seating Capacity2 adults. Will be adding lower foot pegs for my partner who is 6'.
Curb Weight440 Pounds (199 Kilograms)
TiresDunlop ? front
Michelin Pilot 2 Road rear.
Conversion TimeStarted in April 2009.
First ride of bike in September 2011.
Registered in February 2014.
Motor repaired and full time riding started in May 2014.
Conversion CostAround $12,000 for all the components.

Including all the things I bought which I then decided to replace, more like $15,000.
