| Owner | Zsolt Kadar |
|---|---|
| Owner's Other EVs | Tozsola 2 BIFS-BALANCE |
| Location | Budapest, Budapest Hungary map |
| | |

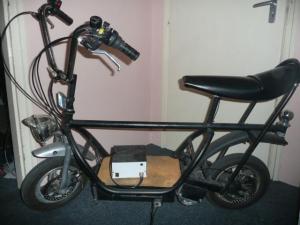

| Vehicle | 2008 Home made An old small electro scooter |
| Motor | Unite Motor MY1020G Permanent Magnet DC 500W 36V DC motor cca 2Nm torque good enough |
| Drivetrain | Simple, just one 3 speed STURMEY ARCHER S-RC3 hub, in the rear wheel, just for very good start torque, and top speed |
| Controller | Yi Yun 36 V 500Watt Scooter controller, max 30 Amps |
| Batteries | DiaMec 12Ah x3 , 12.00 Volt, Lead-Acid, Gel |
| System Voltage | 36 Volts |
| Charger | Homemade 44 Volts max 2,2 Amps |
| Heater | No |
| Top Speed | 25 MPH (40 KPH) max 44 Km/h with 85 kg load, for climbimg the HUB speed shifter STURMEY ARCHER is a solution |
| Range | 9 Miles (14 Kilometers) with 50 kg load, with 85 kg just only 7 miles |
| Watt Hours/Mile | 68 Wh/Mile |
| Seating Capacity | 1 Adult |
| Curb Weight | 77 Pounds (35 Kilograms) Light scooter base, just motor & accu |
| Tires | 12,5 x2,5 x2 |
| Conversion Time | 40 hrs |
| Conversion Cost | cca 300 USD |
ToZsoLa
“microelectro chopper”
Last Updated 02-27-2011
