OwnerRick Smith
LocationMechanic Falls, Maine United States map
Email email image
VehicleCorbin Sparrow
MotorAdvanced DC 203-06-4001 Series Wound DC
8"
DrivetrainCog Belt drive
ControllerCafe Electric Zilla 1K
Batteries13, 12.00 Volt, Lead-Acid, AGM
System Voltage156 Volts
ChargerZivan NG3
HeaterYes
DC/DC ConverterKilovack
Instrumentationa)Link 10 Emeter Digital b)Analog Ammeter
Top SpeedLimiting factor is Motor Rpm.
AccelerationLightning fast
Range50 Miles (80 Kilometers)
at 43 MPH constant, 30 miles at 65 MPH
Seating Capacity1 adult
Curb Weight1,600 Pounds (727 Kilograms)
Tires3, 13X5.5

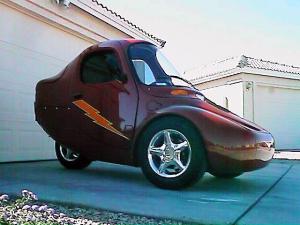

"Flash" (Friends know it as Christine. Both do fit!) This Sparrow has been modified From original Configuration. i.e. Battery boxes have had extra fans added 2 in each one pushing one pulling. Rear box under seat had a scoop added "just above" the bottom of the car as to not add extra drag allowing more airflow while driving. Thermal switches in both battery boxes to allow fans to cycle normally and independently weather car is running, charging or not. Controller has had an external heat sink added and direct mount fan due to heat related controller cut backs in high heat conditions. Remember heat here in the summers rarely get under 110 in the coolest part of the night.
