DMC12 powertrainDMC12 battery pack
OwnerEVE - Electro Vehicles Europe
LocationBergamo, Lombardy Italy map
Web/EmailWebPage email image

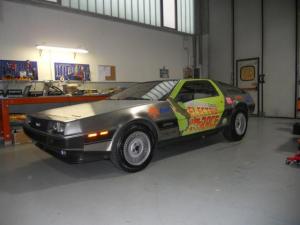

Vehicle1981 DeLorean DMC-12
MotorElectro Vehicles Europe M4-AC90/4-L 3-Phase AC
Asyncronous three-phase liquid cooled, aluminum (anticorodal) case.
50kW nominal@240Vdc (90kW@400Vdc) peak torque 500Nm
ControllerElectro Vehicles Europe EVE TI-240
IGBT 80-330Vdc controller, liquid cooled, vector control
Batteries4.00 Volt, Lithium-Polymer
Rated voltage 3,7V
Capacity 8Ah
Weight ~170g
Power density ~ 190Wh/Kg
Power density ~ 1800W/Kg 5min 3600W/Kg 15sec
Internal resistance with 25° 5mOhm /8Ah --> (96Ah ~ 0,42mOhm) charging
current max 1C duration, recuperation 3C
Max of charging voltage 4,23V recommended 4,14
Discharge current 5C duration, 10C briefly
Min discharge voltage 2,75V recommended 3,5V
Optimal storage with 30 to 60% load (~3,8V) 10-25° life expectancy
Cyclen > 500 at 100% C Use
> 1000 with 80% C use (3.6 - 4,1V) life expectancy time ~ 4 - 6 years
System Voltage240 Volts
ChargerZivan NG3
single-phase 230VAC - 16A
DC/DC ConverterMES DEA 400-1000
Top Speed120 MPH (193 KPH)
Range80 Miles (128 Kilometers)
