Bubba AKA Nelco 60 Hp Trolley motorThe End (back that is)Mechanics view of drivetrainLooking Back (from middle of pack area)Big mess where ICE used to live Aux DrivField of Screams
OwnerDavid Chapman
Owner's Other EV1970 Suzuki LJ-10 4x4
LocationPhoenix, Arizona United States map
Email email image

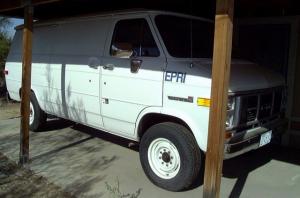

Vehicle1991 Chevrolet Van
1 ton Cargo Van
MotorNelco Series Wound DC
60 HP continuous rated
DrivetrainDirect drive, reduction gearbox
ControllerChloride
Batteries36, 12.00 Volt, Lead-Acid, AGM
2 packs of 18 in series/parallel
System Voltage216 Volts
ChargerMartin-Marietta
on board with Avcon conductive, off board Chloride Electronetworks conductive
HeaterFuel Fired
DC/DC Converter
GM alternator powered by seperate motor driving the PS and AC and alternator
InstrumentationStandard Chevrolet + Cruising Eq E-meter
Top Speed60 MPH (96 KPH)
Range60 Miles (96 Kilometers)
Seating Capacity2 adults plus all you can cram in the back
Curb Weight8,350 Pounds (3,795 Kilograms)
estimated
Tires16
Additional FeaturesPower Steering
Air Conditioning
Avcon Charge Port
