Rod's 1993 Ford Ranger XL

Owner	Rod Moffatt
Location	Kingston, Ontario Canada ^map
Web/Email	WebPage
Vehicle	1993 Ford Ranger XL Shortbox Ford Ranger
Motor	3-Phase AC SEW Eurodrive 4 pole 460V
Controller	Allen-Bradley 20BD022A0AYNANCO Powerflex 700 15 HP drive 460V 22Amps
Batteries	48 Leoch LPS12-36, 12.00 Volt, Lead-Acid, AGM Haven't ordered the batteries yet but I think this is what I will be going with.
System Voltage	576 Volts
Range	Would like to have 80-100km.
Seating Capacity	3 adults

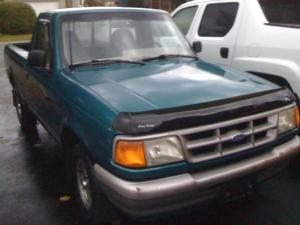

See website for latest updates. 2010/11/15 Purchased a used 1993 Ford Ranger today. It has a bit of rust and 217 000km. It is a 3.0L V6 with 5 speed manual. It needs a clutch slave cylinder. Not that I care because I won't be using the clutch. Anybody know someone that needs a 3.0L V6 engine? 2010/11/07 Removed the 460V brake from the motor today. The motor is new and has never been used. The brake pad was new. The drive also appears to be new. None of the terminals look like they have ever been used. 2010/11/05 Travelled to Rochester, NY to pick up the motor and picked up the drive in Watertown, NY on the way back to Canada. 2010/10/28 Purchased AB Powerflex 700 15Hp drive on Ebay today. The project commitment has increased. 2010/10/27 The EV project has begun!! I purchased a 15hp motor on Ebay today.
