OwnerRoss Nicol
LocationSeaford, Victoria Australia map
Email email image

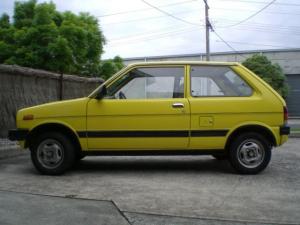

Vehicle1987 Subaru Sherpa
Small Light Hatch, yellow colour. Purchased with blown motor.
MotorAdvanced DC 203-06-4001 Series Wound DC
8" Diameter
72-120volt
single shaft
17.5hp
55hp Peak
DrivetrainMotor adapted to original 4spd transaxle,
clutch has been removed.
ControllerAlltrax AXE 7245
Max Voltage 72v
Programmable
current limit 450A
Batteries24 Thunder Sky TS-LFP100AHA, 3.20 Volt, Lithium Iron Phosphate
3.5kg/cell
constant current 3CA
impulse current 20CA
Cycle Life 3000 @ 80 Percent DOD
5000 @ 70 Percent DOD
System Voltage77 Volts
ChargerElcon TCCH-H87.6-20A
20 amp with Lithium profile
Heaterceramic electric
DC/DC ConverterSevcon 622/11086
72-12v 300w
Instrumentationvolts/amps
e-expert pro battery monitor
Top Speed60 MPH (96 KPH)
100kph ok to run with highway traffic
AccelerationVery Brisk
Range32 Miles (51 Kilometers)
Plenty of range for daily commute to work
and back
Watt Hours/Mile170 Wh/Mile
EV Miles
Start:21,206 Miles (34,120 Kilometers)
Current:21,552 Miles (34,677 Kilometers)
Total:346 Miles (556 Kilometers)

    As of 11/15/2010
Seating Capacity2
Curb Weight1,408 Pounds (640 Kilograms)
No occupants
Tires12"
Conversion Time12 months
Conversion Cost$12,000 parts only
Additional FeaturesVacuum pump for brake booster
TS90 BMS
Brake resevoir level (lamp test circuit)
