Testing
Ownernulluser
LocationMonroe, Michigan United States map
Web/EmailWebPage email image

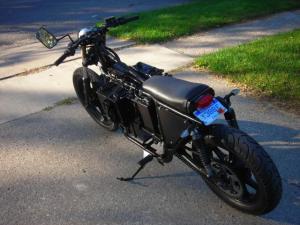

Vehicle1975 Suzuki GT750
MotorMars ME0709 Permanent Magnet DC
ControllerKelly KD72401 Regen
Batteries6 Deka 8A22NF, 12.00 Volt, Lead-Acid, AGM
System Voltage72 Volts
ChargerSchumacher SC-600A
Six Chargers, one for each battery. They are isolated enough that I don't have to disconnect to charge.
DC/DC Converter Green Galaxy 36-72V
InstrumentationCycle Analyst
Top Speed45 MPH (72 KPH)
AccelerationModerate
Range20 Miles (32 Kilometers)
Watt Hours/Mile125 Wh/Mile
Power Usage Data
Speed W-h/m
5 42.0
10 51.0
15 66.7
20 60.0
25 68.0
30 73.3
35 74.3
40 90.0
45 124.4
48 139.6
EV Miles
Current:150 Miles (241 Kilometers)

    As of 1/21/2012
Seating Capacity1 adult
Curb Weight500 Pounds (227 Kilograms)
Conversion TimeTwo months, in spare time.
Conversion Cost$3000
Additional FeaturesGearing: 12 front to 52 rear.
530 Chain.
200 amp DC breaker.
Shunt resistor.
