OwnerBryan Ventresca
Owner's Other EVEV Barstool
LocationColumbus, Ohio United States map

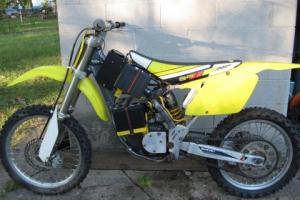

Vehicle2002 Suzuki RM 125
dirtbike
MotorBriggs and Stratton Etek Permanent Magnet DC
Potted and reinforced output shaft
Drivetraincustom made primary gear to stock chain final
ControllerKelly kd72401
Great controller, never had any problems with it.
Batteries6 Genesis 16EP, 72.00 Volt, Lead-Acid, Gel
System Voltage72 Volts
Charger 1
custom made CV 36,72 volt 8.3 amp
Heaternone
Instrumentationbattery charge
Top Speed52 MPH (83 KPH)
after softstart fades it will pull hard to top
Accelerationprogrammed softstart and current limit
Rangeran it moderate for an hour around my home without any drop on battery guage
Seating Capacity1 adult
Curb Weight230 Pounds (104 Kilograms)
Guessing weight, probably a little over stock,
Tiresstock off road atm.
Conversion Timefew months + , started 2 years ago but never posted here.
Conversion Cost$400 dead cycle , 1200 for electrics , tools and time unknown $$$
Additional FeaturesEvrything is bolted on and can be removed and put back to stock. I designed everything so that I can put a gas motor back on or change it later if needed. Motor runs in the right direction through a gear drive primary.
Planned changes : street tires and maybe lights.

Rebuilt everything on the chassis including new swingarm, bearing , seals , brakes but still needs a lower friction chain without O rings.

Eteks self destruct if you run them backwards (ccw), theres no easy way to fix it or prevent that. Potting the armatuer helped with the extra power I am running through the motor and reinforcing the output shaft prevented another failure point visible after disassembly.
