James Massey's electric 10-speed 'bike

Owner	James Massey
Location	Launceston, Tasmania Australia ^map
Vehicle	10-speed bike
Motor	Nelco unknown Series Wound DC used forklift hydraulic motor
Drivetrain	chain drive
Controller	100 Amp, home built PWM
Batteries	2, 12.00 Volt, Lead-Acid, Gel 12 Ah
System Voltage	24 Volts
Charger	two 12 Volt gel cell off board
Heater	Big yellow ball in the sky.
Top Speed	15 MPH (24 KPH) approximately
Range	unknown - too many steep hills here.
Seating Capacity	1 adult
Curb Weight	0 approximately 4 times original bike weight
Tires	original
Conversion Time	2-3 days of time over 6 week period.
Conversion Cost	About $300 Australian, $150 US
Chain guards were added after the 'photos were taken! Alas, this bike has languished, sits in my "junk room" now, batteries robbed off it to be used on something else. An E-bike turned out to be not so useful for me at the present. Once my daughters are a bit older and start to wander the area on bikes it may get refurbished (NiMh cells would make it a lot less heavy), but for now, RIP.

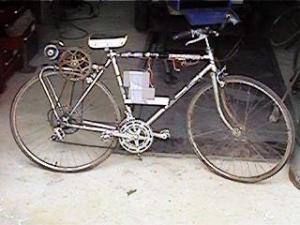

10-speed bike
