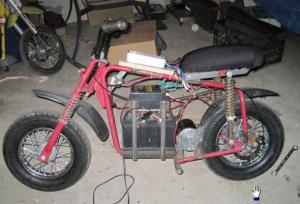

Palmer Zumwalt's Mini Bike

Owner	Palmer Zumwalt
Location	Phoenix, Arizona United States ^map
Email
Vehicle	Mini Bike
Motor	Unite Motor my 1020 1000w Permanent Magnet DC smoker
Drivetrain	chain with free wheel
Controller	Yi Yun YK42-4
Batteries	4 Werker 18 AH, 12.00 Volt, Lead-Acid, AGM
System Voltage	48 Volts
Charger	Two 2-4-8 amp car battery chargers used to charge two batteries at a time
Heater	Arizona Sun
Instrumentation	speed odometer
Top Speed	25 MPH (40 KPH) 25 with a rear sprocket of 63 teeth 22 with a rear sprocket of 72 teeth
Acceleration	Not scary,But fun
Range	three mile ride is the furthest I have gone so far.the batteries show a half charge.
Seating Capacity	1 adult
Tires	scooter tires on 10 inch razor mx wheels
Conversion Time	3 months working on it during spare time
Conversion Cost	Motor $100, Batteries $220 Controller $50, Wheels tires tubes $100 Chain Sprokets brakes throttle $100 Mini Bike frame $60
This is my first EV and basicly built as a experiment. The mini bike has been a great place to start.I learned how to fry a controller,how to smoke a motor and how to do some ev math. The 25 mph top speed is fine for the side streets and on shuch a small bike it feels like your flying. Idealy I like the idea of a electric scooter (vespa kind of thing) with a top speed of 40-45 mph with a range around 15-20 miles. Next comes a custom built frame with real suspenion, bigger motor and bigger batteries.

Mini Bike“Success”
