| Owner | Wilson Reynolds | ||||
|---|---|---|---|---|---|
| Location | Van Buren, Arkansas United States map | ||||
| | |||||

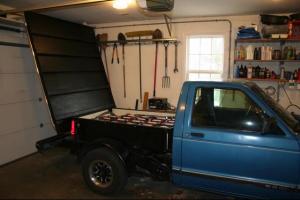

| Vehicle | 1993 Chevrolet S-10 Shortbed Regular Cab | ||||
| Motor | Advanced DC FB-4001A | ||||
| Drivetrain | 5-Speed | ||||
| Controller | Curtis 1231C-8601 | ||||
| Batteries | 24 Trojan T-105, 6.00 Volt, Lead-Acid, Flooded | ||||
| System Voltage | 144 Volts | ||||
| Charger | Quick Charge OP-144-20 20 Amp, 144VDC, 230VAC | ||||
| DC/DC Converter | Elcon 144-168VDC Input, 13.8VDC Output | ||||
| Top Speed | 75 MPH (120 KPH) | ||||
| Range | 50 Miles (80 Kilometers) Average speed no greater than 60mph. | ||||
| EV Miles |
| ||||
| Seating Capacity | 2 adults | ||||
| Curb Weight | 4,200 Pounds (1,909 Kilograms) | ||||
| Conversion Time | Appox one year | ||||
| Conversion Cost | $12,800 | ||||
| 08/2009 - Put on the road. 12/2010 - 350 charge cycles and 9,000 miles. 01/2012 - 700 charge cycles and approx. 16,000 miles replaced batteries. | |||||
1993 Chevrolet S-10
Last Updated 03-24-2013
