Ownerhotschott
Owner's Other EVsElectric Scooter
My best product
LocationEpinal, Vosges France map
Vehicle2010 electrified push scooter

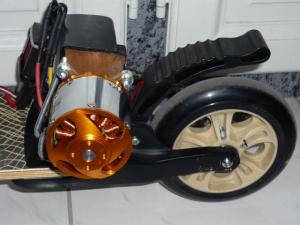

That's my new electric scooter based on a flex deck foldable scooter and rc plane parts. I use a servo tester to control the brushless controller
Motor Turnigy C 6354-250 Brushless DC
that kind of motors are monstrously torquey!!!
DrivetrainChain 5.14/1 gearing ratio
Controller hobbyking 100 Amps
inexpensive 100 Amp brushless DC controller
Batteries2 FLIGHTPOWER 5000, 11.10 Volt, Lithium-Polymer
Rc aircraft batteries bought at hobbyking store.
System Voltage22 Volts
Charger Robbe power peak 300 LIPOLY
a small 30 watts charger
HeaterMother nature
DC/DC Converter
no
Instrumentationno
Top Speed20 MPH (32 KPH)
Not so much top end but accelerates like a dragracer!!! lean forward before you pull the trigger!!!
Acceleration0 to top in 4 seconds
Range4 Miles ( 6 Kilometers)
Watt Hours/Mile888 Wh/Mile
EV Miles
Current:4 Miles (6 Kilometers)

    As of 3/7/2010
Seating Capacity1 person
Curb Weight16 Pounds (7 Kilograms)
Tiresrubber
Conversion Time15 hrs
Conversion Cost$250
