OwnerBuzz Theriault
LocationDartmouth, Nova Scotia Canada map
Email email image

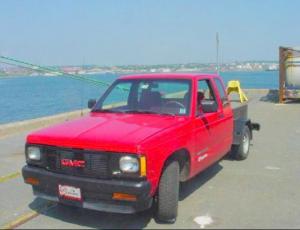

Vehicle1991 GMC Sonoma
91 gmc sonoma chasis with 50 year old technology
is Nova Scotia's most efficient vehicle
MotorAdvanced DC FB1-4001A Series Wound DC
Drivetrain5 speed
clutchless
ControllerCurtis 1231C
controller failed
had it repaired and upgraded to 800amps
Batteries24 Trojan t-105, 6.00 Volt, Lead-Acid, Flooded
System Voltage144 Volts
ChargerKTA
1 x 120v
1 x 220v
on board in place of rear seats
Heater1 x 1500w ceramic
DC/DC ConverterIota
Instrumentationanalog volt and amp
hour meter
fuel gauge
Top Speed70 MPH (112 KPH)
will go 70 m/hr easily
Accelerationgood acceleration
great since controller upgrade
Range50 Miles (80 Kilometers)
maybe half that in -15c (5f)
EV Miles
Start:8,000 Miles (12,872 Kilometers)
Current:45,000 Miles (72,405 Kilometers)
Total:37,000 Miles (59,533 Kilometers)

    As of 9/30/2019
Seating Capacity2 adults
Curb Weight4,100 Pounds (1,863 Kilograms)
GVW 4300 lbs
considered this a success as no
suspension changes were needed
Conversion Time2 months for electric components
6 months for mechanical and body
Conversion Cost$14,000 Canadian
Additional Featureshomemade tilt box with 20 batteries under it
4 more under hood,the 1250lbs under the box make handling very easy,
i seldom drive an ICE vehicle anymore but the most notable difference
is stability,my truck never sways,
no matter how hard i turn,and this leads to some very long coasting
sessions during my daily commute
the simplicity of electric drive trains is the most attractive
feature of ev's for me, 90% of the complexity
of modern vehicles is due to attempts to reduce the carbon footprint
of the conventional gas engine
