OwnerCharles Boyer
LocationSaint -Lazare, Quebec Canada map
Email email image

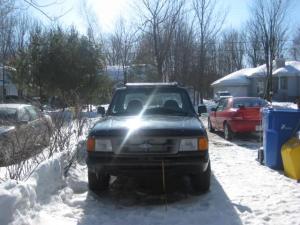

Vehicle1997 Ford Ranger
regular cab pick-up
MotorAdvanced DC FB1-4001A Series Wound DC
28.5HP double shaft
Drivetrain5 speed transmission with clutch
ControllerDC Power Systems Raptor 600
controller with inductive speed throttle
Batteries12 Energizer 27DC-850N 120 AMPS HR, 12.00 Volt, Lead-Acid, Flooded
marine batteries
System Voltage144 Volts
ChargerZivan NG3
220 Volts AC Input 144 Volts DC Output
Heater2 X 144 Volt ceramic heater
DC/DC ConverterIota
InstrumentationVoltmeter, Ammeter
Top Speed90 MPH (144 KPH)
Accelerationbetter than 4 cylinder gas engine
Range25 Miles (40 Kilometers)
Max 80% depth of discharge
Seating Capacity3 adults
Tires235/60R15 98S M+S
Conversion Timemany weekends over a four year period
Conversion Costparts plus donor vehicle approximately $15000 Canadian
Additional Featuresvacuum pumps for power brakes
air suspension
safe power disconnect inside cab
