OwnerLowell Carpenter
LocationSanta Rosa, California United States map
Email email image
Vehicle1995 Ford Escort
MotorGeneral Electric 9" Shunt Wound DC
98 volts, 200 amps
ControllerCurtis 1221
2 Curtis 1221 speed controls piggy backed good for 800 amp surge, limited to 300amps now
Batteries10 Everstart 115 AH, 12.00 Volt, Lead-Acid, Flooded
all batteries brought 6/08
System Voltage120 Volts
ChargerK and W
110 volt on board charger
DC/DC Converter
1 - 75 amp accessory battery also Everstart marine deep cycle
Instrumentationanalog/volt/amp
Top Speed65 MPH (104 KPH)
Range15 Miles (24 Kilometers)
range 15 to 20 miles depending on right foot and driver
EV Miles
Start:168,429 Miles (271,002 Kilometers)
Current:168,875 Miles (271,719 Kilometers)
Total:446 Miles (717 Kilometers)
Seating Capacity4 adults
Curb Weight2,530 Pounds (1,150 Kilograms)
Tires195/70/14

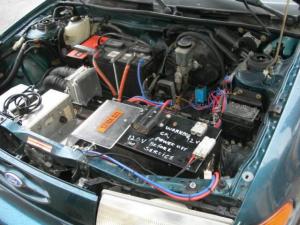

1995 ford escort, 5 speed with reline atf , 9' g.e. shunt traction motor, 98 volts, 200 amps, 10- 115 amp everstart deep cycle marine batteries, 1 - 75 amp accessory battery also everstart marine deep cycle, all batteries brought 6/08

new kyb gas shocks, new front and rear brakes, car carries salvage title, needed a donner car, not hit had bad ic motor. weighs 2630 stock is 2355 = gain of 275 lbs, top speed 65 mph , but like 35/45 mph. range 15 to 20 miles depending on right foot and driver, k & w 110volt on board charger, 2 curtis 1221 speed controls piggy backed good for 800 amp surge, limited to 300amps now, its adjustable , good for running around town, have tow bar for car.707.578.3579 for sale $3100.00
