OwnerStephen Taylor
Owner's Other EVsDoran
1999 NiCD Solectria Force
1999 Solectria Force
Solectria Sunrise
LocationMarietta, Georgia United States map
Email email image

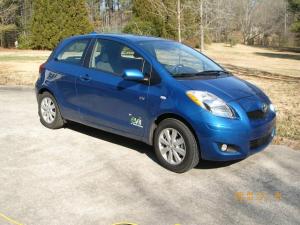

Vehicle2009 Toyota Yaris 3dr
MotorAzure Dynamics/Solectria AC24 3-Phase AC
DrivetrainSingle speed Azure gearbox
ControllerAzure Dynamics/Solectria DMOC445
Batteries88 Kokam 100 AH, 3.70 Volt, Lithium-Polymer
System Voltage326 Volts
ChargerBrusa NLG5
3.3 kw
HeaterMES-DEA 4kw liquid heater running through original heater core
DC/DC Converter
Not sure what model EVii is using, but original Toyota Aux battery remains too. If any one recognizes it, the green item on the passenger side, I would be glad to know what it is.
InstrumentationBMS screen shows pack voltage, high amps draw, speed, high and low cell voltages, bar graph of all cell voltages, bar graph of all cell temps as well as highest temp. Other info not working well.
Top Speed80 MPH (128 KPH)
AccelerationWay better than the Solectria Force I am use to. Probably comparable to the RAV4 EV I have too
Range160 Miles (257 Kilometers)
So far I have gone 155 miles, about half of which was at 55mph, with the SOC reading 7%. It seems there may be more range left after hitting zero, but I haven't tested that yet.
EV Miles
Start:22 Miles (35 Kilometers)
Current:13,200 Miles (21,238 Kilometers)
Total:13,178 Miles (21,203 Kilometers)

    As of 12/12/2010
Seating Capacity2 adults
TiresMichelin Energy Saver
Conversion Time7 months
Conversion Cost$32,000. Total cost was $48,000 including the car.
Additional FeaturesAir conditioning
