OwnerDave
LocationToronto, Ontario Canada map

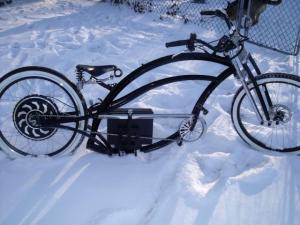

Vehicle2010 Firebike Frame, Chopper U.S. Front End
Paint has a black base coat and added some metalic flake with a red tinted clear coat which makes it look burgundy in direct sunlight.
MotorGolden Motors Magic Pie Brushless DC
Magic Pie has a regenerative braking and a 24~48 volt integrated controller
Drivetrainsingle speed
ControllerGolden Motors
Inside the hub motor.
BatteriesCammy CC, 36.00 Volt, Lithium-Polymer
lifepo4
Charger Vpower HK
5 amp
Instrumentation"Watts up" electric meter
Top Speed20 MPH (32 KPH)
Maximum allowable speed in Ontario :(
Accelerationaccelerates from dead stop.
Range25 Miles (40 Kilometers)
EV Miles
Current:20 Miles (32 Kilometers)

    As of 5/2/2010
Seating Capacity1 tall person
Curb Weight94 Pounds (42 Kilograms)
Bike weight, 59 pounds.
Tires26x 2.125 inch Kenda white wall
Conversion Time3 months, complete.
Additional FeaturesDouble sprung Brooks leather adjustable saddle
The location of the battery gives it a low center of gravity and handles nice.
All the wiring go's through the 1 and a half inch top tube frame giving the bike a very clean appearance.

After only 20 kms. the magic pie controller broke, I was exchanged at no cost to me. Lets hope this one last longer.
