InteriorBattery tray.On trailerCharger and watererRear view
OwnerBarry Elkin
Owner's Other EVs2002 Toyota RAV4 EV
Electric Go Kart
1973 New Idea Electric Garden Tractor
LocationLittleton, North Carolina United States map
Web/EmailWebPage email image

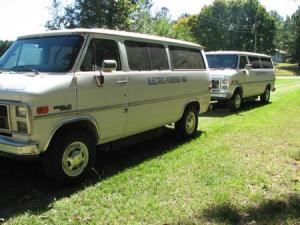

Vehicle1991 GMC G-Van
MotorNelco Separately Excited DC
60 HP, 45 kw
Over 300 lbs.
DrivetrainRear wheel drive. The axle is reversed with the
motor behind it connected to a very short drive
shaft through a reduction transmission
ControllerChloride
Includes a 40 amp DC/DC inverter
Regenerative braking
BatteriesUPS12-270FR Used UPS batteries, 12.00 Volt, Lead-Acid, AGM
I need a new set of batteries.
System Voltage216 Volts
Charger Chloride
Very large but works great.
HeaterDiesel Fuel fired hot water heater using the
existing heater coil
DC/DC Converter Chloride
40 amp. built into the Chloride controller
InstrumentationSpeedometer,Odometer, State of Charge Gage,
Heater Fluid Temperature Gage, Auxiliary
Battery Voltmeter, Heater Fuel Gage, Low
Heater Fluid Level Indicator,Battery Pack Low
Voltage Indicator, Trip Odometer Reset button,
Brake System Warning Light, Safety Belt
Reminder Light, Trip Odometer
Top Speed55 MPH (88 KPH)
AccelerationEventually
Range40 Miles (64 Kilometers)
10 Miles with 18 batteries.
20 Miles with 36 batteries.
40 Miles with 54 batteries.
Watt Hours/Mile700 Wh/Mile
Seating Capacity5 adults plus rear cargo area.
Curb Weight7,800 Pounds (3,545 Kilograms)
It still has a usable load of over 1000 lbs.
Additional FeaturesRegenerative Braking
Rear Wheel Anti-Lock Brakes
Air Conditioning
Lots of room Length 202 in, 5134.61 mm
Height 78.9 in, 2004.6 mm
AM/FM Radio with Cassette player
This G-Van has been sold.
