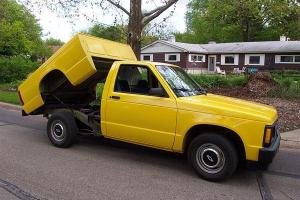

Eye CandyFirst charge after i bought it.
OwnerTed R. Lowe
Owner's Other EVsGE Elec-Trak E20 Tractor
2000 Dodge Dakota Quad Cab
LocationWheaton, Illinois United States map
Web/EmailWebPage email image
Vehicle1992 Chevrolet S-10
pickup, standard bed
MotorAdvanced DC FB1-4001A Series Wound DC
9" 19HP, dual shaft
Drivetrain5 Speed Manual Transmission
ControllerCurtis 1231C-8601
96-144 Volt, 500 Amp
Batteries20 Trojan T-125, 6.00 Volt, Lead-Acid, Flooded
14 rear, 6 front
System Voltage120 Volts
ChargerZivan NG3
Heater120 VDC built-in and a custom designed 1,500 Watt auxiliary cabin-heater.

Electric seat heaters.
DC/DC ConverterDC Power Systems
Instrumentationa) SCC LED BAR SOC Meter
b) 0-300A Meter
Top Speed75 MPH (120 KPH)
Never tried higher, but there isn't much power left at that speed.
AccelerationAdequate for 0-60mph local and regional driving. Not a race truck!
Range50 Miles (80 Kilometers)
Less in the winter unless i heat the batteries up with the custom built thermal management system.
Watt Hours/MileWill be calculating this this year!
EV Miles
Start:8,000 Miles (12,872 Kilometers)
Current:44,000 Miles (70,796 Kilometers)
Total:36,000 Miles (57,924 Kilometers)

    As of 4/9/2015
Seating Capacity2.5 adults
Curb Weight4,175 Pounds (1,897 Kilograms)
Over the original weight by about 500 lbs, but still have plenty of room for cargo.
TiresStandard cheap tires. Will get low rolling resistance ones upon replacement.
Conversion TimeI bought the truck ready to drive as an electric in February 2001.
Additional FeaturesAir conditioning runs off of front shaft of motor.

40GB Ipod stereo(years of music for my 30 minute drives:-)
