| Owner | Marc Erkens |
|---|---|
| Owner's Other EV | E-Tracktor |
| Location | Schinnen, Limburg Netherlands map |
| Web/Email | WebPage |

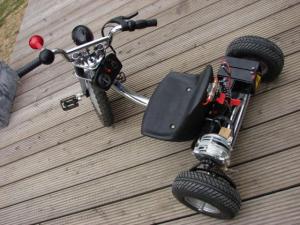

| Vehicle | 2009 Choppa Tricycle I have made this EV Trike from several parts. First the Choppa Tricycle where I replaced the plastic wheels with rubber ones on steel rims. Then the Currie 24 Volts 600 Watt motor kit and several small parts like Voltmeter and headlight. |
| Motor | Currie DCM-160 Permanent Magnet DC Currie DCM-160 Permanent Magnet DC 24 Volt 600 Watt motor at 2600 Rpm |
| Drivetrain | Drivetrain is direct drive with a ratio 1:4 resulting in a maximum speed of 38Kmh |
| Controller | Currie |
| Batteries | 2 BSOL BFX 12-18, 12.00 Volt, Lead-Acid, AGM Make BSOL German company. |
| System Voltage | 24 Volts |
| Charger | 24 volt |
| Heater | none |
| Instrumentation | 1 voltmeter and headlight |
| Top Speed | 25 MPH (40 KPH) This was a bit of a surprise to me. When I saw my daughter speeding away I decided to reduce the speed, but still have no idea how to do this. |
| Acceleration | Brisk |
| Range | 5 Miles ( 8 Kilometers) |
| Seating Capacity | 1 child |
| Curb Weight | 40 Pounds (18 Kilograms) |
| Tires | Rubber tires on metal rims |
| Conversion Time | 3 weeks |
| Conversion Cost | 375 Euros |
| Additional Features | WebPage |
VeTi E-Racer
“EV Trike”
Last Updated 08-11-2015
