OwnerMichael Reiss
Owner's Other EV1972 Simplicity 3415H Tractor
LocationPortland, Oregon United States map

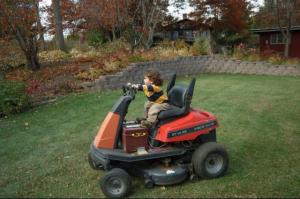

Vehicle1997 Simplicity Agco Allis ZT 14 38
Zero Turn Ride On Mower
38" dual blade deck
original motor was 14 hp
MotorBaldor Series Wound DC
2800rpm 36V 53A 2HP
From Old Club Car Golf Cart
DrivetrainDual Belt Drive Eaton Hydrodrive
Transaxles
Batteries6 Trojan T105, 6.00 Volt, Lead-Acid, Flooded
From Old Club Car Golf Cart
System Voltage36 Volts
ChargerLester
LESTER 36V 25A AUTOMATIC GOLF CART BATTERY
CHARGER
Top Speed6 MPH ( 9 KPH)
Increased radius of the main drive
pulley to correct for lower RPM. The
blades still turn a little bit slower
but it works fine, there is plenty of
torque to keep them moving fast enough
to cut nicely even when mulching a big
pile of leaves.
Rangeat least an acre even with these really
old T105's...
Watt Hours/Mile110 amps up a hill with the blades going
30 to 60 amps on flat depending on what
you are cutting / mulching.
Seating Capacity1 adult
Curb Weight1,026 Pounds (466 Kilograms)
620 lbs mower
+80 lbs cutting deck
+366 lbs batteries
+60 lbs electric motor
-100 lbs gas engine
Conversion Cost$150 mower
$350 golf cart
$100 machining/parts for motor shaft
coupler
$30 new solenoid (blew the one from the
golf cart)
$20 metal and bolts
$50 blades
$700
