Motor and rear brake
OwnerMarcelo Shulman
LocationBuenos Aires, Buenos Aires Argentina map
Web/EmailWebPage email image

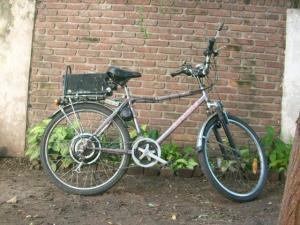

Vehicle1998 Space 650
Mountain bike, 18 speeds, 26' wheels, front v-brake, rear drum brake
Motor Brushless DC
Chinese BDLC hub motor "Red Flag" with Hall sensors, 36V 350W
ControllerShenzen
Chinese controller
Batteries3 EVX 12120 F2 12V 12AH, 12.00 Volt, Lead-Acid, Gel
CSB batteries
System Voltage36 Volts
Chargerunknown Switching power source
Brand Changzhou Jianshan Electric Factory

Input 220 V 100 W
Output 44 V 1.8 A
InstrumentationSpeedmeter, Odometer, Voltimeter
Top Speed23 MPH (37 KPH)
37 kph +-3 depending on wind
Range28 Miles (45 Kilometers)
Beetween 30 and 45 kms depending on speed and wind
TiresLevorin (Made in Brazil)
Conversion TimeSome days
Conversion Cost360 U$S
Additional FeaturesHorn, LED stop and turn lights

See us at WebPage /> WebPage
The original sensor wiring was wrong, tested and corrected, fuse holder replaced
