| Owner | Dave Bock |
|---|---|
| Owner's Other EV | Lynx |
| Location | Cornwall, England United Kingdom map |
| Web/Email | WebPage |
| Vehicle | Tiger Cat E1 |
| Motor | Advanced DC Series Wound DC |
| Drivetrain | 3.9:1 differential |
| Controller | Zapi 120 Volt 80 Amp |
| Batteries | 6.00 Volt, Lead-Acid, Flooded |
| System Voltage | 120 Volts |
| Charger | Zivan NG3 |
| DC/DC Converter | Zivan 400 watt |
| Instrumentation | Battery volts, amps and digital speedo |
| Top Speed | Well capable of legal speeds! |
| Range | 30 Miles (48 Kilometers) |
| Seating Capacity | 2 adults |
| Curb Weight | 1,584 Pounds (719 Kilograms) |
| The cat is about to recieve a new control system. It will be fitted with an IGBT based controller and will run at 240 Volts (nominal) 60 Amp . It is also being fitted with new Elecsol carbon fibre based batteries, 20 No at 80 Ah each, this will take the curb weight to 870 kg. | |

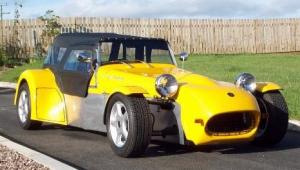

Tiger Cat E1
“Kit-E-Cat”
Last Updated 10-01-2000
