old engineStrippedmotor mountengine mountingfiberglass tankSecondary motor mountBattery LayoutTest Fit
OwnerAlex
LocationSan Mateo, California United States map
Web/EmailWebPage email image

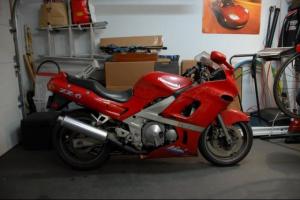

Vehicle1995 Kawasaki Ninja ZX6E
Motor, controller, and throttle mounted.
Still need to mount the dc converter and finalize the battery design.
MotorD&D Motor Systems, Inc. ES-10E-33 Separately Excited DC
D&D sucks
ControllerKelly KD72503
Kelly rocks
Batteries6 Tempest, 12.00 Volt, Lead-Acid, AGM
working on the battery box..
System Voltage72 Volts
Charger Tempest
Modular on board charging. 8amp charger per battery.
Heatergloves/jacket
DC/DC ConverterMeanwell SD-350D-12
350 Watts
Top Speed65 MPH (104 KPH)
expected
Range30 Miles (48 Kilometers)
at 45mph
Seating Capacity2 adults
Curb Weight500 Pounds (227 Kilograms)
Conversion CostDonor bike - $800
+ motor, controller, dc converter, throttle, regen throttle, etc = about $2000 total
batteries + chargers = $840
