OwnerDave Kois Powered By DC, LLC
LocationOlympia, Washington United States map
Web/EmailWebPage email image

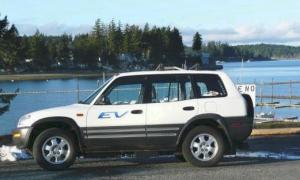

Vehicle1996 Toyota Rav 4
This Rav 4 was converted by Powered By DC, LLC. It is capable of going around 100 miles per charge at freeway speeds. All of the batteries are under the vehicle the only thing inside the cabin space is the charger which can be removed
MotorNetgain warp 9 Series Wound DC
Controller Synkromotive (Beta Controller)
We are currently Beta testing a new controller from Synkromotive in this vehicle. We have put a few hundred miles on it and so far it is working great
Batteries48 Thunder Sky LFP200ah, 3.30 Volt, Lithium-Ion
LiFFePO4
System Voltage156 Volts
ChargerManzanita Micro PFC30
HeaterLiquid
DC/DC ConverterIota 55
InstrumentationE-Vision
Top Speed70 MPH (112 KPH)
I have had it up to 70 mph it could probably go faster but to be nice to the batteries and have decent range I try to keep it at 60-65 mph
Range100 Miles (160 Kilometers)
capable of around 100 miles at freeway speeds
Seating Capacity5 adults
Curb Weight3,300 Pounds (1,499 Kilograms)
Conversion Time3 months
Conversion Cost$47,000
