LocationPuerto de Vega, Asturias Spain map
Email email image
Vehicle2008

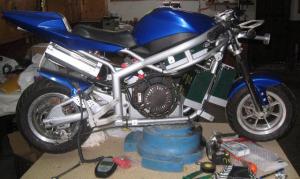

Chinese Yamaha R1 Replica Pocket bike
MotorPerm Motor PMG 132 Permanent Magnet DC
4,74 KW at 48V 110A 2300 min-1
WebPage /> motor.de/site/en/products/dc_motors.php
?linkid=p&linkid2=4
DrivetrainChain drive.
06 B-1 (DIN 8187)
21 tooth front
37 tooth rear
ControllerPenny and Giles
24-48VDC (14.5-63V Absolute)450A(1 min)
180A (1 hour rating).With regen.
WebPage /> x.html WebPage /> option=com_content&view=category&layout
=blog&id=42&Itemid=67














Batteries4 CSB EVX 12200, 12.00 Volt, Lead-Acid, AGM
12V 20Ah. 230A(5 sec) 14mOhm.














System Voltage48 Volts
ChargerDeltran
48V 10A, 5-Step AGM and Flooded -Golf
Style battery charger.
HeaterFabes y Sidrina.
Nun fai falta gasolina.
DC/DC ConverterMeanwell SD-25C-12
INPUT: DC48V(36-72V) 0.8A
OUTPUT: +12V 2.1A
InstrumentationLCD Display Sigmagauge.(battery
discharge,volts,amps,speedometer,
odometer).
Top Speed60 MPH (96 KPH)
Range10 Miles (16 Kilometers)
EV Miles
Current:350 Miles (563 Kilometers)
Seating Capacity1 Adult
TiresFront:90/65-8
Rear:130/50-8
ZHONG YA
Conversion Time6 months
Conversion Cost3000 euros....UHMMMM
Additional FeaturesHand made white led bulbs.
Very fast and great acceleration
