| Owner | Eric Lambert |
|---|---|
| Location | Trois-Rivieres, Quebec Canada map |
| | |
| Vehicle | 1994 Chevrolet S-10 (Converted by US Electricar) |
| Motor | GM Hughes 3-Phase AC 3 phase |
| Drivetrain | Speed reducer (ratio 9:1) |
| Controller | General Motors/Hughes AC power inverter |
| Batteries | 52 Hawker Genesis, 12.00 Volt, Lead-Acid, AGM 32 Ah (2 banks in parallel) |
| System Voltage | 312 Volts |
| Charger | 120/240 VAC built-in |
| DC/DC Converter | built-in, (40 Amp |
| Instrumentation | State of charge |
| Top Speed | 70 MPH (112 KPH) governed |
| Range | 75 Miles (120 Kilometers) |
| Seating Capacity | 2 adults |
| Curb Weight | 4,700 Pounds (2,136 Kilograms) |
| Tires | Low rolling resistance Uniroyal 205/75/R15 |
| Battery pack needs to be replaced. Considering the Nickel-zinc which will lower the truck weight by 700 pounds and increase the range to 70-100 miles. Installation of an E-meter in progress. Motor and inverter liquid cooled. Installation of an electric tilt-bed using a small encoded Brushless DC motor. | |

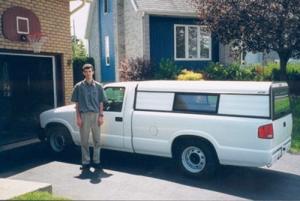

1994 Chevrolet S-10
“White Angel”
Last Updated 08-20-2000
