| Owner's Other EV | Etrail2 | ||
|---|---|---|---|
| Location | Fraga, Aragon Spain map | ||
| | |||
| Vehicle | 2000 recycled garbage Old MTB recovered with front suspension | ||
| Motor | Cyclone 500w Brushless DC brushless motor with planetary reduction 9:1 | ||
| Drivetrain | Transmission by a chain pinions 11-34 | ||
| Controller | Controller internal cyclone | ||
| Batteries | 24.00 Volt, Lithium-Polymer | ||
| System Voltage | 24 Volts | ||
| Heater | SOL | ||
| Instrumentation | Odometer, RC Feigao meter, GPS | ||
| Top Speed | 26 MPH (41 KPH) | ||
| Range | 18 Miles (28 Kilometers) | ||
| Watt Hours/Mile | 23 Wh/Mile | ||
| EV Miles |
| ||
| Seating Capacity | 1 adult | ||
| Curb Weight | 59 Pounds (26 Kilograms) | ||
| Tires | 26" | ||
| Conversion Time | two months | ||
| Conversion Cost | 1150 Euros | ||

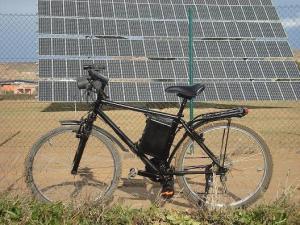

| This is my second Ebike, after handling with a hub motor, I decided to do this in order to use the gear change and so I was a very light vehicle that can I use in my daily commute to work, goes up very well steep slopes of the road and get a flat in very good speed, battery supports either the 24 km road daily, and the accommodation of battery weight and focuses not notice anything. | |||
Etrail
Last Updated 03-23-2009
