OwnerHarold
LocationColumbia, Mississippi United States map
Email email image

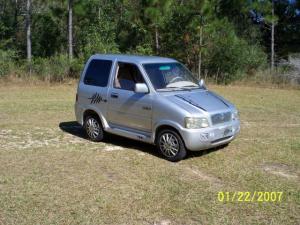

Vehicle2005 Zap Hebio/Zap Worldcar
factory built NEV Modified for very unacceptable speeds
MotorHeibao DKF112M-4 3 Phase a/c 3-Phase AC
air cooled, built in sensors, around 25 to 35 hp, over 100 in fry mode
Drivetrain11 to 1 straight gearbox
ControllerMES DEA tim-400
high voltage inverter, very programmable, learns , water cooled, out put up to 50kw
Batteries14 Dynasty DS-100L, 168.00 Volt, Lead-Acid, AGM
1000 lbs of batteries under the seats, later can upgrade to li-ion when the price gets right, until then these work great
System Voltage168 Volts
ChargerZivan NG3-168
plug and play (forget)
Heatermain pack voltage, also has factory A/C, motor driven compressor,
DC/DC ConverterZivan 55 amp
runs when key on
Instrumentationtrip meter, fuel gauge(cal voltmeter)amp meter (HA) big wrong reading voltmeter(priceless)
Top Speed80 MPH (128 KPH)
two modes, eco and performance low setting is long range up to 60 miles, hp mode 10 miles
Accelerationlow mode (slug) guy on a ten speed will give you a run for your money,
Hi mode (power turned all up) hang on, tire smoke and known to break drive line parts,
Range60 Miles (96 Kilometers)
driving with range in mind will give 60 miles, can go more but do not like to deep,deep discharge the batteries, looking for long life
Watt Hours/Milehaven't figure it out yet
EV Miles
Start:116 Miles (186 Kilometers)
Current:50,308 Miles (80,945 Kilometers)
Total:50,192 Miles (80,758 Kilometers)

    As of 2/22/2014
Seating Capacityfour large people, or me and ten under ware models
Curb Weight2,500 Pounds (1,136 Kilograms)
steel body, fiberglass front end,
TiresP155/65R13 MAYPOPS (overinflated)
Conversion Timefactory built
Conversion Costmade modes along the way, don't want to know the cost
Additional Featurestilt wheel , nice stereo, electric ant, electric windows, electric door locks(guess the people over there have short arms) tray like trunk in the back that pulls out and can fill with ice,beer etc, and talk to your friends about how much they pay for gas, fold down rear seat, battery cooling fan, interval wipers, nice seats, fog lights, and a lot of little things to fix when they break,
good driving little car, had a lot of problems along the way , managed to do a lot of mods to fix the problems for good, now the more I drive it the less problems I am having, I drive over 50 to 75 miles a day, charging along the way , car is no longer imported, if your reading this over there , and want the mods I made contact me and I will send them to you ,
