Anthony Bailey's 1975 Wheel Horse

Owner	Anthony Bailey
Location	Marble Hill, Missouri United States ^map
Email

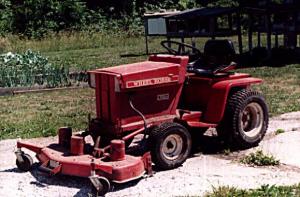

Vehicle	1975 Wheel Horse C-185 (Elec-Trak)
Motor	General Electric Compound Wound DC
Drivetrain	Transaxle, 4 speed ranges, 7 forward and 3 reverse speed positions
Batteries	6 Trojan T-105, 6.00 Volt, Lead-Acid, Flooded 4 under seat and 2 under hood
System Voltage	36 Volts
Charger	on board 120 VAC
Heater	solar
Instrumentation	a) power remaining b) power useage
Top Speed	9 MPH (14 KPH)
Range	mowing 2.5-3.5 acres, snow removing, 6-10 drives
Seating Capacity	1 adult or 3 kids
Curb Weight	894 Pounds (406 Kilograms)
Tires	front 6.50 x 8, rear 10.50 x 12
36 Volt DC electric accessory and PTO outlets, push button cruise control, single switch controls forward and reverse, foot speed control, 42" front mounted rotary mower, front electric lift. Available options when new include: 48" dozer blade, 42" snow thrower, rear mounted tiller, rear electric and manual lifts, 110 Volt AC Rotary inverter, Aerator, 31" and 38" lawn sweepers, lawn roller, utility cart and wagon, harrow, chainsaw, plus other hand power tools.
