Owner | Wayne Samel |
---|---|
Location | Red Deer, Alberta Canada map |
Web/Email | WebPage |
Vehicle | 1977 Bicycle with Yamaha starter This is a commuter style bike converted to electric assist. |
Motor | Yamaha Series Wound DC XS 650 Yamaha motorcycle starter. |

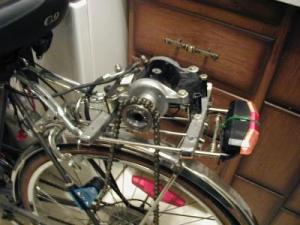

Drivetrain | Using a 12 volt Yamaha XS650 motorcycle starter motor. It drives through a BMX type freewheel sprocket. |
Controller | It is using a solenoid switch and rocker button. |
Batteries | 1, 12.00 Volt, Lead-Acid, Gel Just uses one 12 volt gel battery around 30 ah or more. |
System Voltage | 12 Volts |
Charger | Uses a regular auto charger. |
DC/DC Converter | none needed |
Instrumentation | Battery- headlight, tail light, brake light, horn and rear signals. |
Top Speed | 20 MPH (32 KPH) Pulls okay on level ground but needs pedaling for any inclines. |
Acceleration | Weak unless pedaling to assist the motor. |
Range | 2 Miles ( 3 Kilometers) Goes farther on higher amp battery but weight is a factor. |
Seating Capacity | 1 adult |
Curb Weight | 0 Bike plus about 30 lbs. |
Tires | bike |
Conversion Time | Casual work over the winter months. |
Conversion Cost | Motor off ebay: $20 had to rebuild. Switches, solenoid, wiring $20 Clamps and brackets $10 Sprockets $30 All together about 100 dollars. |
Additional Features | Runs quite smooth with chain drive and BMX freewheel. Can still be pedaled as usual for assistance. Currently changing over to smaller wheels for lower gearing. No vibration using rubber mounting on rear carrier. |
