OwnerSantiago R. Meier
Owner's Other EVHonda XR250R
LocationMadrid Spain map
Web/EmailWebPage email image

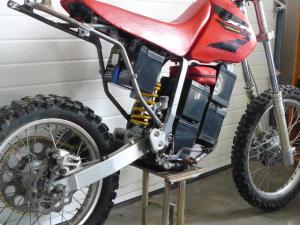

Vehicle2000 Honda XR250R
Rugged steel frame, great suspension and brakes.
MotorMars ME0201013001 Brushless DC
3-phase permanent magnet DC motor, rated at 5kW
continuous, 10kW peak output power @ 60 volts.
DrivetrainMotor mounted on the swingarm drives the rear wheel. Chain
and sprockets, direct drive 11:75
ControllerKelly KBL72301 72v 300A + regen

Batteries5 Exide 33Ah, 12.00 Volt, Lead-Acid, AGM
System Voltage60 Volts
DC/DC Converter 60-84VDC in 12VDC 300W out
Top Speed45 MPH (72 KPH)
Top speed was moderate.
AccelerationNot measured. Was acceptable, not bad, but I was looking for
a high performance system.
Range15 Miles (24 Kilometers)
Efficiency drops dramatically over 100A...
Curb Weight290 Pounds (131 Kilograms)

Additional Features
