| Owner | Michael Day | ||||||
|---|---|---|---|---|---|---|---|
| Location | Sydney, New South Wales Australia map | ||||||
| Web/Email | WebPage | ||||||
| Vehicle | 1989 Toyota MR2 AW11 | ||||||
| Motor | MES DEA 200-250 3-Phase AC | ||||||
| Drivetrain | Standard MR2 gearbox modified as a two speed using 2nd and 3rd gears. | ||||||
| Controller | MES DEA TIM 600 | ||||||
| Batteries | 45 Nissan Leaf, 8.20 Volt, Lithium-Ion | ||||||
| System Voltage | 369 Volts | ||||||
| Charger | Elcon | ||||||
| Heater | HotStart | ||||||
| DC/DC Converter | Chenic | ||||||
| Instrumentation | Batrium | ||||||
| EV Miles |
| ||||||
| Seating Capacity | 2 adults | ||||||
| Curb Weight | 2,400 Pounds (1,090 Kilograms) | ||||||
| Tires | 195/50 R15 82V with 15 inch Rota Grid Wheels | ||||||
| Additional Features | Batrium BMS | ||||||
| MR02EV has be a register, road going EV for 4 years and used regularly as a city commuter car. The first traction battery pack was constructed from 56 Thundersky Lithium-ion cells giving 200 Volts, however, the MES-DEA motor-inverter can support 400 Volts. Hence the upgrade to Leaf modules. Replacing the main battery pack of an EV is a significant job, and has spawned a several other projects. More on my website. | |||||||

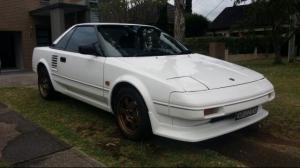

1989 Toyota MR2
“MR02EV”
Last Updated 01-06-2017
